Description of the Professional Nail Making Machine:
1, Make nail from used reinforcing steel bar is the high technical usage and recycle the waste to make nail.
Advantage: Low motor. Energy saving, high quality.
2, Whole line of working processing
Waste or new steel wire—-wire drawing machine- Nail maker—polisher machine-Final nails
3, Raw material:
Dia <8mm, length>10 cm, the waste steel. Wedding rod as raw material.
4, This machine could produce 20-180 mm(2, 2.5, 3, 4, 5, 6 inches), the mould could change for the different nails.
5. Overall dimentions: 2346*1512*1205MM
6. Nail making specifications: 50-100MM
7. Output: 280sets/min
8.Diameter: 2.8-4.5mm
Nail making machine specifications:
| DATA | 1.6c | 2.8c | 3.4c | 4.5c | 5.5c | 6.5c | Unit |
| Diameter | 0.9-1.8 | 1.2-2.8 | 1.8-3.4 | 2.8-4.5 | 3.4-5.5 | 4-6.5 | MM |
| Length | 9-30 | 16-50 | 30-75 | 50-100 | 75-155 | 100-180 | MM |
| Output | 480 | 320 | 300 | 280 | 180 | 150 | Pcs/min |
| Power | 1.5 | 2.2 | 3.0 | 4.0 | 5.5 | 7.5 | KW |
| Outer
dimention |
1000×750
x1000 |
1550×1000
x1200 |
1970×1200
x1200 |
2436×1512
x1205 |
2510x1540x1815 | 3510×1940
x2015 |
mm |

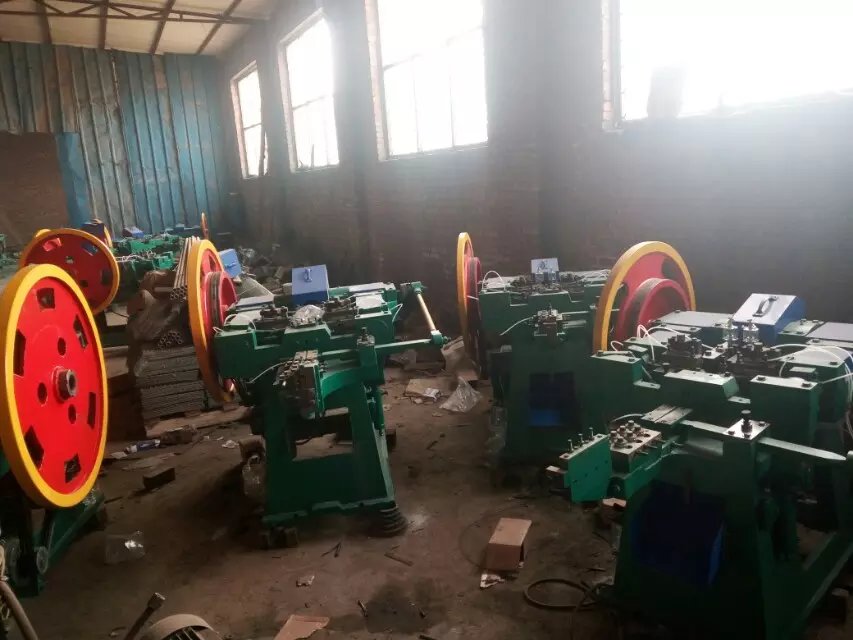

Nail making machine Images:
